ATSF SD40-2 "snoot" 5134

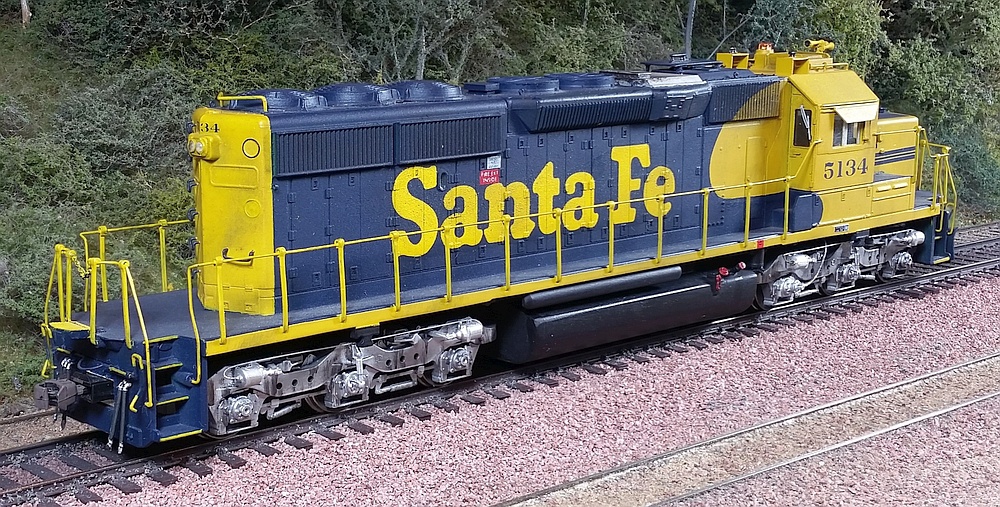

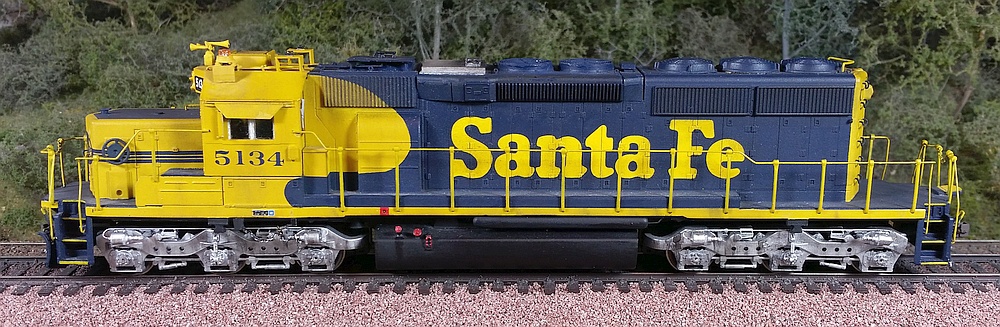

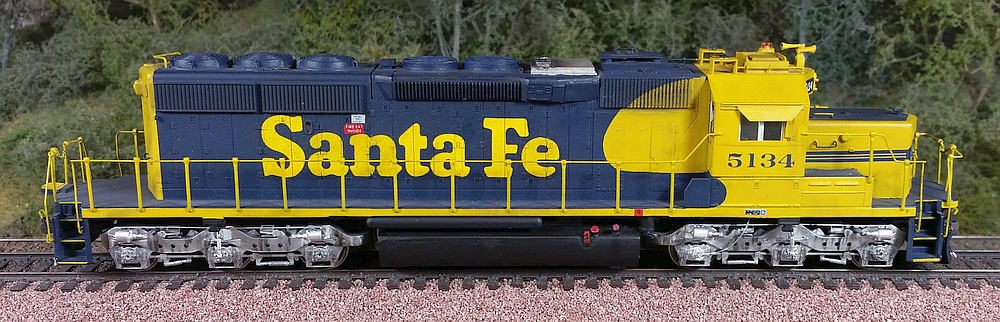

This model is an Athearn "blue box" SD40-2 with a
Canadian Prototype Replicas "snoot" nose kit installed.
I updated the unit to represent a late-model SD40-2 with Q fans,
exhaust silencer, and associated bulging dynamic brake blister.
This model won first place, diesel category, at the
1992 NMRA-PCR Coast Division meet in Concord, CA.
This model is an Athearn "blue box" SD40-2 with a
Canadian Prototype Replicas "snoot" nose kit installed.
I updated the unit to represent a late-model SD40-2 with Q fans,
exhaust silencer, and associated bulging dynamic brake blister.
This model won first place, diesel category, at the
1992 NMRA-PCR Coast Division meet in Concord, CA.

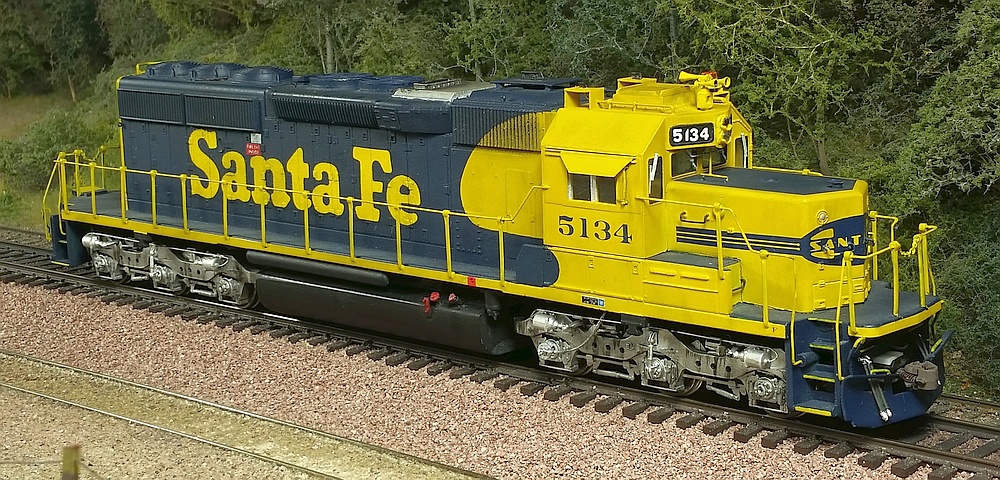

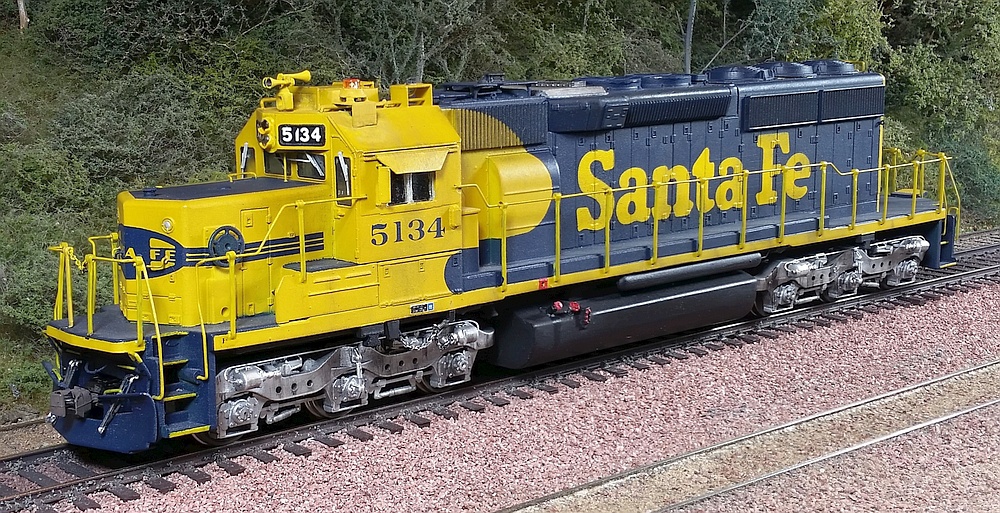

Above & below: On the prototype, the extended short hood, or "nose", housed the "Locotrol" radio control
equipment, which allowed controlling mid-train helpers remotely from the head-end locomotive.
equipment, which allowed controlling mid-train helpers remotely from the head-end locomotive.

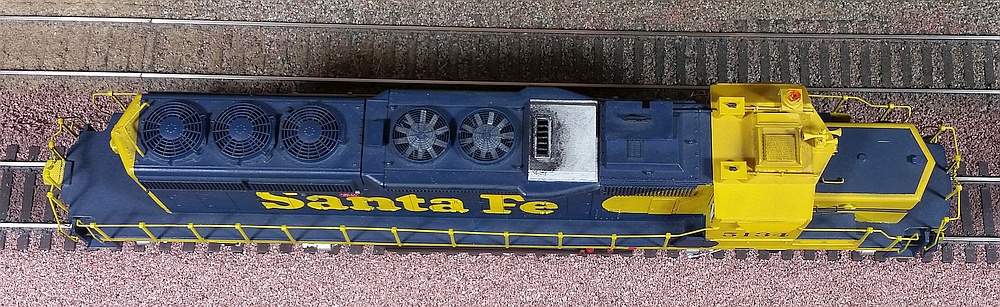

Below: On the prototype, the two small black antennae on the raised platforms were for the Locotrol radio control system.
I scratch-built the platforms and wire conduits, and added Details West antenna castings. At the rear are the Q fans, an
open-grill brass part from Precision Scale ("Q" was for "quiet", EMD's attempt to reduce audible noise from locomotives).
I opened up the dynamic brake fan housings and added internal fans made from Athearn truck wheel hubs and styrene
blades. The grills are Detail Associates. The open exhaust stack and surrounding silencer (silver) are also Precision Scale.
To create the dynamic brake blister "bulges" on either side of the exhaust stack, I inserted styrene into the Athearn casting.
I scratch-built the platforms and wire conduits, and added Details West antenna castings. At the rear are the Q fans, an
open-grill brass part from Precision Scale ("Q" was for "quiet", EMD's attempt to reduce audible noise from locomotives).
I opened up the dynamic brake fan housings and added internal fans made from Athearn truck wheel hubs and styrene
blades. The grills are Detail Associates. The open exhaust stack and surrounding silencer (silver) are also Precision Scale.
To create the dynamic brake blister "bulges" on either side of the exhaust stack, I inserted styrene into the Athearn casting.

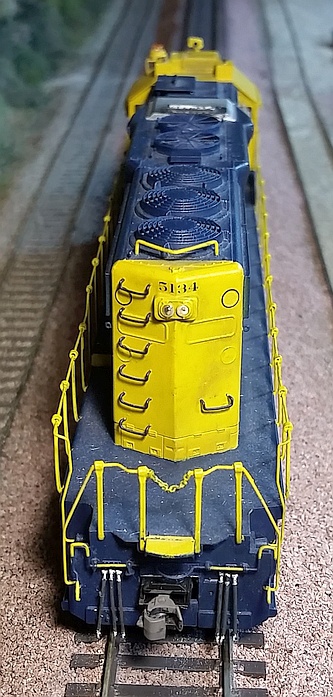

The front and back have all the typical
EMD details found on Santa Fe diesels
in the mid-1980's. These parts came from
the usual suppliers - Details West, Detail
Associates, A-Line, Precision Scale, etc.
This model is fitted with a DCC decoder,
so the headlights work and cab-top rotary
beacon flashes.
EMD details found on Santa Fe diesels
in the mid-1980's. These parts came from
the usual suppliers - Details West, Detail
Associates, A-Line, Precision Scale, etc.
This model is fitted with a DCC decoder,
so the headlights work and cab-top rotary
beacon flashes.
-- About
-- Contact
-- Diesels
-- Links

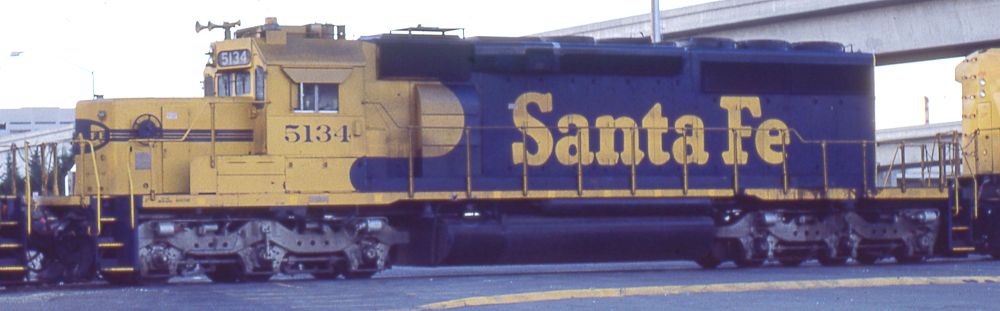

Below: Here is 5134 working in Richmond, CA in the early 1980's - this photo inspired my model. I really like the look of
snoot-nosed SD40-2's; they just look "fast" with that extended nose up front and the stretched out "porch" on the rear.
snoot-nosed SD40-2's; they just look "fast" with that extended nose up front and the stretched out "porch" on the rear.

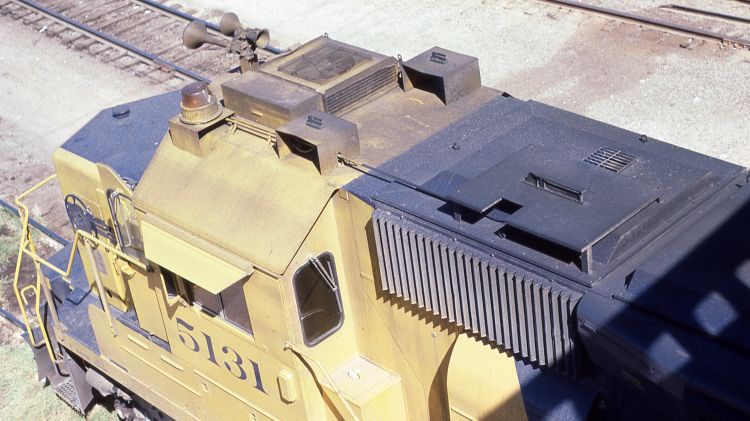

Right: The other inspiration for my
model was all the "stuff" on top the
cab, as seen here on sister unit
5131. The two small antennae
were for Locotrol, used to
remotely-control mid-train helpers.
This technology has been
superseded by "DPU"
(distributed power unit) technology.
model was all the "stuff" on top the
cab, as seen here on sister unit
5131. The two small antennae
were for Locotrol, used to
remotely-control mid-train helpers.
This technology has been
superseded by "DPU"
(distributed power unit) technology.
